Controller for Gray and Gemstone Ereada Mats Compact Pro, Professional and Single
CONTROLLER for Gray and Gemstone Ereada Mats Compact Pro, Professional, Single

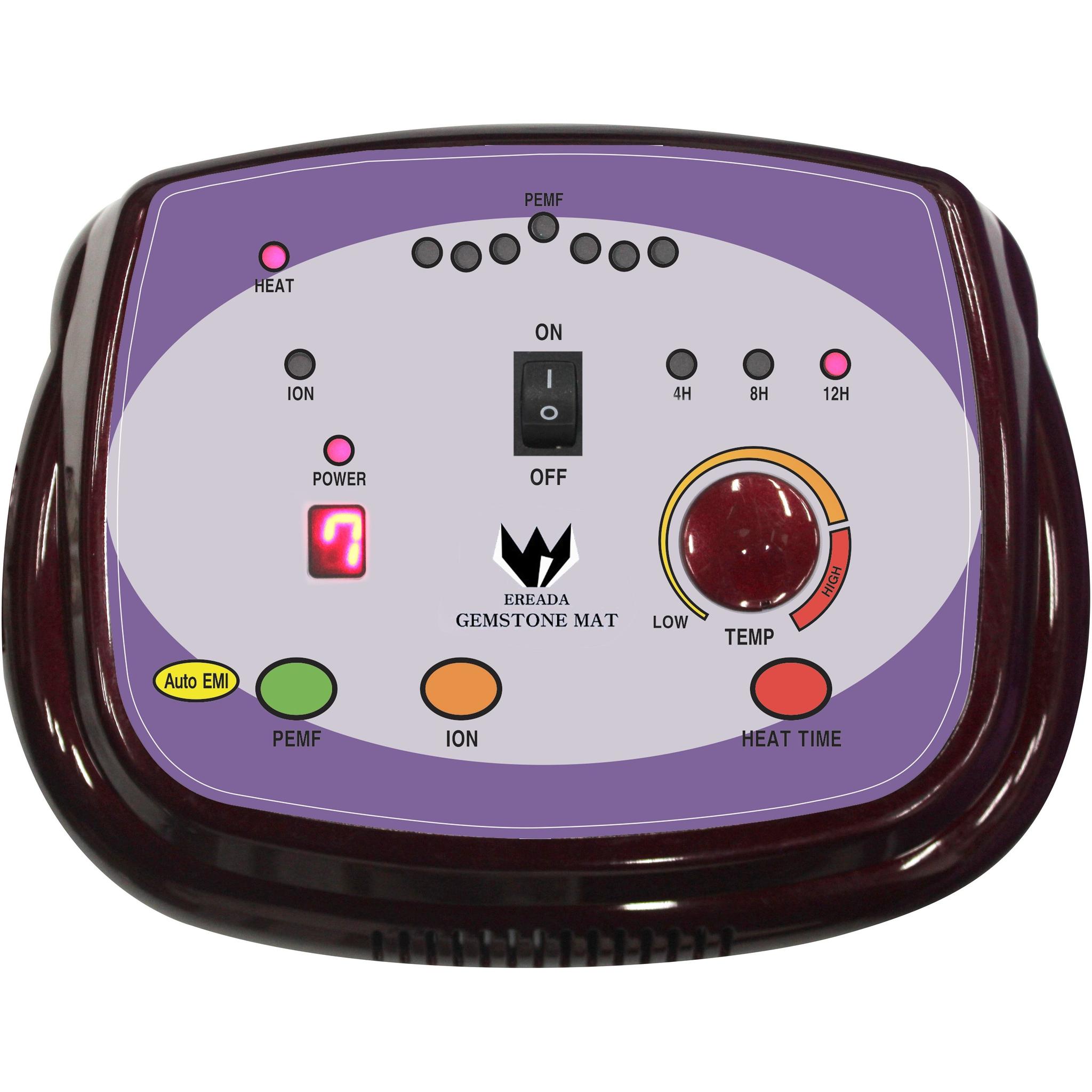

Controller for Compact PRO and larger Gemstone Ereada Bio Magnetic Mats with PEMF
All Controllers for Gemstone Compact Pro, Professional and Single Bio Magnetic Mats have a temperature dial to choose one of seven temperature settings in the range between 86°F~158°F (30°C-70°C) displayed as levels 1-7 on the controller screen.
The controller activates magnetism with 20 min cycles every 2 hours, auto-shuts off after 4 cycles.
These controllers have three-time settings for 4, 8, or 12 hours of procedure length to chose. The Timer should be activated to start heating and all other functions. Controller auto-shuts off the mat after preset time expires.
Controllers have built-in air ion function generating negative ions which auto-shuts off after 1 hour of operation.
All functions can be manually activated or stopped at any time by pressing the appropriate button.
Heat levels are displayed as Levels on the controller screen.
|LEVEL 1||86°F or 30°C (Sleeping mode)|
|LEVEL 2||98°F or 36°C (Low mode)|
|LEVEL 3||110°F or 43°C (Low medium mode)|
|LEVEL 4||120F or 49C (Medium mode)|
|LEVEL 5||133°F or 56°C (Medium-High mode)|
|LEVEL 6||145°F or 63°C (High mode)|
|LEVEL 7||158°F or 70°C (Highest mode)|
The controller has built-in AUTO EMI ( Electromagnetic waves interception ) function automatically detecting and transferring absorbed EMFs into the wall socket “ground pin” for Earthing.
THIS CONTROLLER FITS GRAY and GEMSTONE EREADA BIO MAGNETIC COMPACT PRO MATS 24"x59", PROFESSIONAL MATS 29"x73" AND SINGLE SIZE MATS 39"x75".
This controller does not fit Purple Ereada Amethyst Mats or Brown Ereada Amethyst Mats with N.P. function.
Ereada ventilated controller is very durable and if it was not damaged while in the shipping process it should work properly for many years.
To extend life, please, follow these rules:
- When the controller plug is disconnected from the mat terminal, it is important not to pull the controller plug by the wire as it may damage the connectors or make them loose. The controller cable connector plug is to be pulled by one hand holding the mat connection terminal socket by the other hand and slowly disconnecting each from other.
- The plug with the connector from the controller to the mat terminal socket should be connected tightly. If not errors may be shown. The easiest way to solve any problems is to reset the controller by disconnecting the plug of the controller from the power socket first and then from the mat connection terminal. Then first reconnect the mat tightly and then plug it into the electricity socket again.
- Do not put the controller on the hot mat. Do not spill water on the controller. Never touch it with wet hands. Never wash it or clean with chemicals.
- If your area is subject to frequent electrical blackouts or power spikes, it could be better to connect the device to electricity through surge protection, AVR, or UPS device similar to that one that protects computers or refrigerators. It will protect the controller from the power surge caused faults.
QUESTIONS & ANSWERSAsk a Question
Hi Have ordered a used mat midsize and the step down transformer. Can I buy one controller to operate on 220V. Janar
UPGRADE: Since Summer 2019 we have 220-240V Ereada Amethyst mats in Gray, Brown, and Purple Collections! Always select a 220-240V product for the U.K. and other countries with this voltage.
Hello Janar, Thanks for your question. It is not possible to purchase a 220V controller. The whole mat has to be customized to work with 220V. We do not have 220v mats like that right now but hope to have them in March 2019. Please keep in touch.
Do i need to buy this seprately or does this come with the mat?
Thanks for your order and your question.
Yes, the controller is in the mat set.
Usually Ereada® mat set includes:
Ereada Amethyst or Gemstone Mat (rather heavy, be careful when moving) Controller with wires Thick Waterproof 3-D Air Mesh Padded Cover to cushion the mat and eliminate extra pressure from crystals or stones. It is FIR, PEMF and Ions Permeable. Some models of mats come with a pair of covers: (1) Thick non-washable protector. (2) Thin also waterproof washable cover with four corner-straps Bag for carrying and storage mat Owner's Guides and paper sheets
